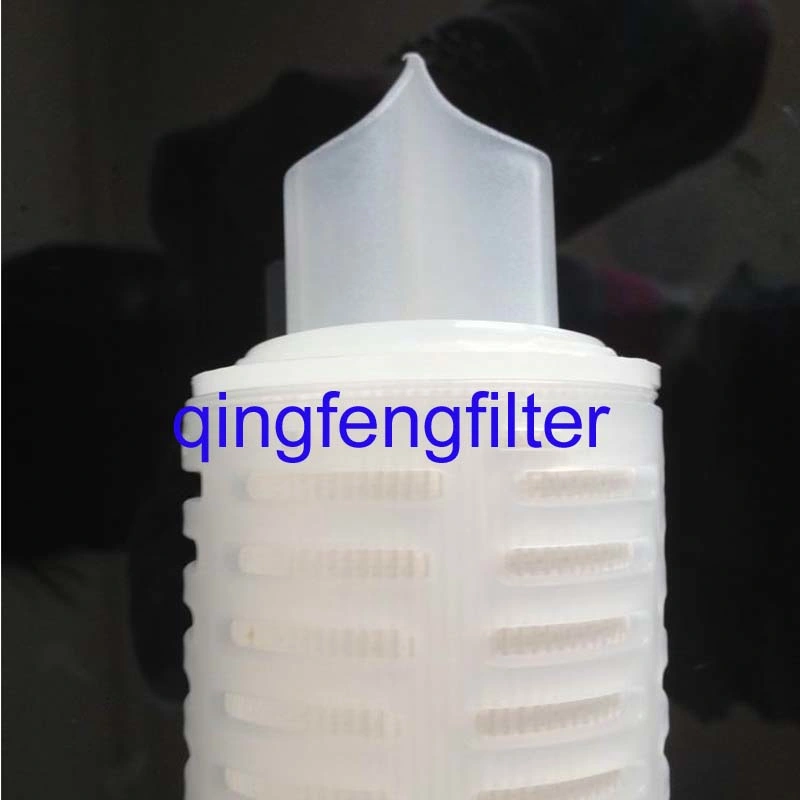

PP Pleated Filter Cartridge
Introduction:
The filtration media of PP micropore filter cartridge is superfine PP fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1um to 60um, the materials comply with FDA related requirements. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life feature. The structure of PP has stable performance and wide chemical compatibility.
Typical Applications:
Medical industry; Chemical industry; Food industry; Electronic industry and others
Specification
Certificates:
Introduction:
The filtration media of PP micropore filter cartridge is superfine PP fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1um to 60um, the materials comply with FDA related requirements. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life feature. The structure of PP has stable performance and wide chemical compatibility.
Typical Applications:
Medical industry; Chemical industry; Food industry; Electronic industry and others
Specification
| Filter medium | PP filter membrane |
| Support layer | Polypropylene |
| Core & Cage | Polypropylene |
| End caps | Polypropylene |
| O-rings/Gasket | Silicone/EPDM/Viton |
| End connection | DOE,222,SOE,Code-7(226/Fin) |
| Sealing Technology | Thermal Bonding, No Adhesives |
| Removal Ratings(μm) | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0,10.0,20.0 (um) |
| Length | 5", 10", 20". 30", 40" |
| Outer Diameter | 68mm (2.67 in) |
| Effective filtration area: | 0.4~0.7square meter/10" |
| Max. operating temperature | 90ºC,(△P≤0.1Mpa) |
| Max. positive pressure | 0.42Mpa(25ºC) |
| Max. back pressure | 0.28Mpa(25ºC) |
| PH value | 1--13 |
| Sterilizing temperature | 121ºC/30min |
| Others: special requirement of diameter and end caps can be customized | |
| Complete test (minimum bubble point)(25ºC;95%isopropanol) | |
| 0.20um >=1050 mbar | |
| 0.45um >=750 mbar | |
